Hydraulic Pile Driver-SCV Series

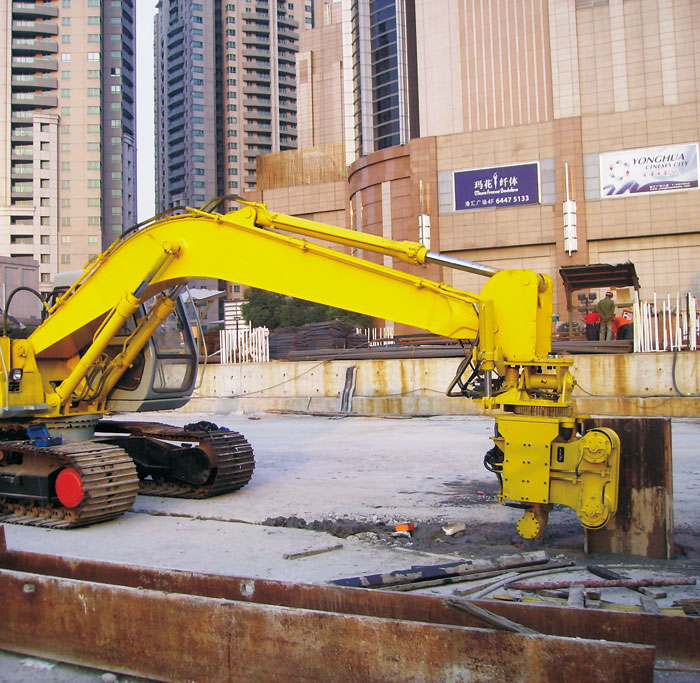

Hydraulic vibrator SCV Series

Shanghai Trust High frequency hydraulic vibro-hammer series

Trust Full range of high frequency hydraulic vibrators is in high reliability. The main parts of hydraulic system are imported from well-known brands companies to ensure the machine quality. Vibro-hammer with active smart tilt system issue pile picking up faster and efficient, more accurate positioning steel sheet pile operated in more simple way is available, its efficiency can be increased by 30%.

High reliability

Trust main parts of vibrator hydraulic system are imported from well-known brands to ensure the machine quality.

High efficient
Vibrators with active smart tilt system issue pile picking up faster and efficient, more accurate positioning steel sheet pile operatedin more simple way is available, efficiency can be increased by 30%.

Advanced electric control system
Trust high frequency hydraulic vibrators adopted the integrated circuit control system developed by BSP and advanced internationalsolenoid valve, ensure the stability and efficient of electric control system.

Compact hydraulic system
Compact hydraulic pipe-line layout, it not only reduces hydraulic lines from wearing, but also makes the device 360 ° rotationfreely.

Independent rotating mechanism
Adopt independent rotary mechanism and make steel pile positioning accurately, 360 ° rotary to improve the efficiency ofconstruction equipment.

Unique side clamps
Our unique side clamp is able to avoid the pile length restrictions. It is workable to pile steel pile in 15 meters or more withoutprolong the arm. Low headroom is in the scope of construction.

Dismounting rapidly
Trust vibrator can match most all brands of manufacturer of excavators and no need of modification to excavators, use the breakercircuit directly, without destroy the excavator’s own oil circuit. Only need half of an hour to dismounting the vibrator.

Hydraulic vibrator SCV Series:
British BSP & TRUST SCV series, high frequency hydraulic Vibrator owned patents of BSP, with variety functions .

Fast installation
Easy operation
Dismounting quickly
Efficient and environmental
Unlimited for pile length



SCV Series Hydraulic Vibrator Technical parameters
Technical Parameters:
Spec Unit SCV30 SCV50 SCV70 SCV90
Vibro Force Ton 31 50 67 86
Frequency r/min 2545 2560 2660 2850
Amplitede 6.5 7.2 7.4 7.8 7.8
Bottom Clamp Force 35 60 80 95 95
Side Clamp Force 21 23 29 34 34
Working Pressure MPa 26.5 29 31 35
Working Flow L/min 140 190 240 260
Pile Length M Suitable for every kind of piles
no need to extend the arm
Excavator Ton 18~20 20~25 25~30 35 Greater than
